T-Rings / T-Mounts for Telescopes
Quality T-Rings for Nikon, Canon, Micro 4/3, Sony NEX and more.
T-Rings for SLR/DSLR Cameras
A T-Ring couples your SLR or DSLR camera body to a T-Adapter or other camera mount. Each camera manufacturer has a different mount, which requires a specific T-Ring. The internal thread is known as "T" or "T2" and is 42mm (.75 pitch). These quality T-Rings are CNC machined of aluminum with a durable black anodized finish.
| Camera Body Mount |
Item # |
Price |
Add to Cart |
T-Ring for Canon EOS |
TEOS |
$18.95 |
|
T-Ring
for Canon FD (manual) |
TCAN |
$14.95 |
|
| T-Ring
for Nikon |
TNIK |
$18.95 |
|
T-Ring
for 4/3 |
T43E |
$22.95 |
|
T-Ring
for Olympus (OM Series) |
TOLY |
$18.95 |
|
T-Ring for Micro 4/3 |
TM43 |
$24.95 |
|
T-Ring
for Pentax (M42) Screw Mount |
TPSM |
$14.95 |
|
T-Ring
for Pentax K |
TPKM |
$18.95 |
|
T-Ring
for Sony Alpha / Minolta Maxxum |
TMAX |
$22.95 |
|
T-Ring for Sony NEX (Fits all "E" Mount Cameras - NEX3, NEX5, NEX7, etc) |
TNEX |
$25.95 |
|
|
TSSN |
$25.95 |
"T" Extension Set - 4 pc
This handy extension set can be used to securely place your camera where you want it. Threaded Male on one end, Female on the other. Thread size is 42mm (.75 pitch) for use with any standard T-Ring or T Adapter. Includes 4 pieces (20mm, 15mm, 10mm and 5mm). CNC machined of aluminum, fully baffled and anodized black.
Description |
Item # |
Price |
Add to Cart |
"T" Extension Set (4 piece) |
TEXT |
$29.95 |
T-Threaded Aluminum Dust Caps
CNC machined of aluminum with a black anodized finish
These quality protective caps are CNC machined of high grade aluminum and anodized black. They have a knurled grip ring around the perimeter for ease of use and come in both male or female thread. The actual thread size is 42mm (.75 pitch).
NOTE: Male caps can also be used in combination with our step rings to cap off many odd sized threads.
Great for use on: Cameras fitted with a T Ring , CCD Imagers, flip mirrors, prime focus adapters, eyepiece projection adapters, T threaded eyepieces, eyepieces fitted with a digital T ring, telescopes fitted with camera adapters, focusers with T threaded ends, for use with our Digi-Kits and more!
Description |
Item # |
Price |
Add to Cart |
T-Cap (Male Thread) |
DCTM |
$7.95 |
|
T-Cap (Female Thread) |
DCTF |
$7.95 |
|
T-Cap Set (1 Male & 1 Female) |
DCTS |
$14.95 |
SLR/DSLR
Prime Focus Kit
for 1.25" Telescopes
If your scope accepts 2" eyepieces consider our True-2 adapter, if your scope accepts 1.25" eyepieces this is the way to go. The included parts will allow you to couple your SLR or DSLR camera to a standard 1.25" eyepiece port for "prime focus" astrophotography. The money saving combo includes our popular 1.25" prime focus adapter (#T125) packaged along with the appropriate T-Ring for your brand of camera. Parts are "T" threaded for compatibility with many other adapters. All parts are aluminum with an anodized black finish.
| Camera Body Mount |
Item # |
Price |
Add to Cart |
Canon EOS Prime Focus Kit |
KEOS |
$39.95 |
|
Canon
FD (manual) Prime Focus Kit |
KCAN |
$34.95 |
|
| Nikon
Prime Focus Kit |
KNIK |
$39.95 |
|
Olympus
(4/3) E-Volt Prime Focus Kit |
K43E |
$42.95 |
|
Olympus
(OM Series) Prime Focus Kit |
KOLY |
$39.95 |
|
Pentax
(M42 screw mount) Prime Focus Kit |
KPSM |
$34.95 |
|
Pentax
"K" Prime Focus Kit |
KPKM |
$39.95 |
|
Sony Alpha Prime Focus Kit |
KMAX |
$42.95 |
|
Sony NEX Prime Focus Kit (Including models NEX3, NEX5, etc) |
KNEX |
$47.95 |
|
MICRO 4/3 Prime
Focus Kit |
KM43 |
$44.95 |
Easy as 1-2-3!
1. Select a suitable eyepiece and slip off the rubber eyeguard.
2. Place the Digital T Ring on top and secure it with the included wrench.
3. Thread your eyepiece into your cameras step ring.
Your eyepiece becomes an afocal T adapter!
These Digital T Rings fit a wide variety of eyepieces and offer many advantages. Primarily used for attaching point & shoot type digital cameras to telescope eyepieces. They offer easy installation, light weight, virtually automatic centering, and the ability to couple more closely than just about any other adapter design. We offer 2 different sizes. Size #1 is by far the most popular and fits Meade 4000 Series Plossls, most 1.25" Meade SWA's and UWA's, Meade ETX 60/70 eyepieces, Celestron NexStar Plossls (newer type with rubber eyeguards only), Orion Sirius Plossls, ScopeTronix Plossls, Generic Series 300/400 Plossls, and many more imported eyepieces with removable rubber eyeguards. If in doubt simply pull the rubber eyeguard off the eyepiece you intend to use and measure the diameter of the top of the eyepiece. Not for use with eyepieces without rubber eyeguards. Note: Once installed you will have an eyepiece with a male T thread on top. You will also need an "Attachment Kit" to attach the Digital T-Ring to your digital camera. Manufactured of aluminum with a black anodized finish. Set screws and allen wrench are included.
Description |
Item # |
Price |
Add to Cart |
Digital T Ring #1 (Fits Size Range: 1.22" - 1.26") |
DTR1 |
$27.95 |
|
Digital T Ring #2 (Fits Size Range: 1.10" - 1.14") |
DTR2 |
$27.95 |
Use your best eyepieces for photography!
Fits many Tele Vue
eyepieces!
(41mm Panoptic shown)
AdaptaView
Premium Eyepiece Adapter
This versatile adapter will fit many premium eyepieces with a removable rubber eyeguard and a top diameter (with the eyeguard removed) between 1.25" and 1.75". It is known to fit the following eyepieces....Tele Vue 32mm Plössl, 40mm Plössl, 55mm Plossl, All Nagler Type 2's and Type 4's, All Panoptics, Radians and Ethos. It also fits Televue and Vixen Zoom eyepieces and the following Meade eyepieces: UWA-8.8mm and 14mm, SWA-24.5mm, 32mm, 40mm and 56 Super Plossl. Useful for both SLR/DSLR and Digital Cameras using the proper step rings or T Ring. To use this adapter you slip off the rubber eyeguard and secure the 3 thumbscrews into the groove that normally retains the eyeguard. Due to the weight of the camera nylon screws are not an option, any light marks that may be left after removal will be covered up by the eyeguard when it is replaced (the same screw system is used by TeleVue on their Radian adapter).
This unit is equipped with a standard male "T" thread on top (42mm .75). You will also need a T-Ring, Step Ring and/or "Attachment Kit" to mount to your camera.
Description |
Item
# |
Price |
Add
to Cart |
AdaptaView |
AVIEWU |
$39.95 |
Universal T Adapter
The Universal T Adapter fits a very wide variety of eyepieces found on telescopes, microscopes, spotting scopes, even many medical instruments such as slit lamps. Available in different size ranges to cover most eyepieces. These adapters are manufactured of aluminum with a black anodized finish and have 6 nylon thumbscrews to center and secure it to the eyepiece. The thread is a standard male 42mm "T" Thread. You will also need a T-Ring, step ring and/or "Attachment Kit" to mount to your camera.
Tip: After centering and adjusting the adapter for your eyepiece put a mark on an adjacent upper and lower thumbscrew.
From now on only loosen these 2 screws for removal and it will be self centering the next time you use it.
Description |
Item # |
Price |
Add to Cart |
1.5" Universal T Adapter |
UT1 |
$29.95 |
|
2.5" Universal T Adapter |
UT2 |
$69.95 |

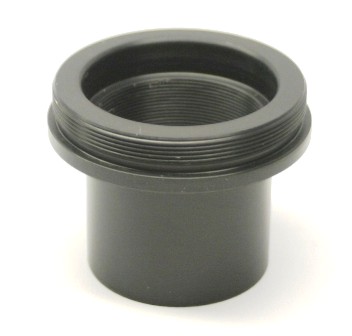

1.25" Prime Focus T Adapter
This basic "T" adapter fits into a standard 1.25" telescope eyepiece port and has a standard 42mm male "T" thread on top. For use with SLR & DSLR type cameras at prime focus (using no eyepiece or camera lens). You will also need a T-Ring to fit your brand of camera. Manufactured of aluminum with a black anodized finish. The 1.25" end is also threaded for standard 1.25" eyepiece filters.
Description |
Item # |
Price |
Add to Cart |
1.25" Prime Focus T Adapter |
T125 |
$22.95 |
1.25" Reverse T Adapter
Attach Male 1.25" Devices to a Male T Thread
This Reverse T adapter will allow you to attach male 1.25" devices to male T threads. Used for such things as attaching an 1.25" imager to a projection adapter, etc. Manufactured of aluminum with a black anodized finish.
Description |
Item # |
Price |
Add to Cart |
Reverse "T" Adapter |
RTA |
$29.95 |
Eyepiece Projection Camera Adapter
This basic eyepiece projection camera adapter fits into any standard 1.25" telescope eyepiece port and can hold a moderately sized eyepiece within it for eyepiece projection photography. Unlike "Prime Focus" astrophotography where you are just using the telescope as a large camera lens "Eyepiece Projection" allows you to increase the power by inserting the appropriate eyepiece into the adapter "projecting" the eyepiece image into your SLR or DSLR camera. You can also unscrew the 1.25" nose and connect it directly to a T-Ring for prime focus shots. You will also need a T-Ring to fit your brand of camera. Manufactured of aluminum with a black anodized finish. The 1.25" end is also threaded for standard 1.25" eyepiece filters. The eyepiece upper barrel can be no larger than 1.45" in diameter and no longer than 1.3" in length.This adapter is recommended for SLR & DSLR type cameras only.
Description |
Item # |
Price |
Add to Cart |
Basic Eyepiece Projection Adapter |
BEPA |
$27.95 |
Variable Eyepiece Projection Camera Adapter
This Variable Eyepiece Projection Adapter allows you to do both Prime Focus and Eyepiece Projection astrophotography. By varying the length of the adapter you vary the placement of the film plane (or CCD sensor) in the light cone. The further back the higher the magnification. This is extremely useful for framing a shot just the way you want it. By changing the focal length of the eyepiece you can make major changes in magnification, by varying the adapter length you make smaller changes, think of it as a Coarse and Fine magnification control. This adapter fits into any standard 1.25" telescope eyepiece port and can hold a moderately sized eyepiece within it for eyepiece projection photography. For prime focus shots just unscrew the 1.25" nose and connect it directly to a T-Ring. You will also need a T-Ring to fit your brand of camera. Manufactured of aluminum with a black anodized finish. The 1.25" end is also threaded for standard 1.25" eyepiece filters. This adapter is recommended for SLR & DSLR type cameras only.
(The eyepiece upper barrel can be no larger than 1.5" in diameter. For larger eyepiece see Item # MEPA below)
Description |
Item
# |
Price |
Add
to Cart |
Variable
Eyepiece Projection Adapter |
VEPA |
$48.95 |
2" Prime Focus Variable Tele-Extender
The Variable length lets you change magnification for easy framing of your shots!
This sturdy 2" Prime Focus adapter easily changes length, that lets you position the image plane of your camera exactly where you want it in the "cone of light" exiting your scope. This varies the magnification by changing the size of the image striking your CCD chip. Having some control over magnification makes it much easier to frame your shots just the way you want them. This adapter is also very useful for Refractor type telescopes. Since many refractors have a very limited focus range it is usually necessary to remove the diagonal and use an appropriate length extension tube in its place. This places the camera at the proper distance to reach focus within the limits of your focusers travel. Rather the trying to find the exact length of extension needed you can simply adjust the length of this adapter. So in this case it can prevent you from having to buy 2 separate parts. Accepts standard 2" eyepiece filters. CNC Machined of aluminum with a durable black anodized finish. For SLR/DSLR type cameras only.
Specifications:
Size: 2"
Type: Prime Focus
Filter Thread: 48mm
Min Extension: 60mm (Measured Flange to Flange)
Max Extension: 95mm (Measured Flange to Flange)
To use this with your SLR/DSLR camera you will also need a T-Ring to fit your brand of camera.
Description |
Item # |
Price |
Add to Cart |
2" Variable Tele-Extender / Extension |
VTE2 |
$44.95 |
MaxView 40 Photographic Eyepiece & T Adapter
for Digital Camera Imaging
The MaxView 40
Unscrew the eyeguard to reveal a "T" thread for easy camera hookup.
The "Variable" feature lets you match the Eyepiece to your Camera optics for best results.
The MaxView 40 is a custom made eyepiece designed specifically for "Afocal" connection to a digital camera. "Point & Shoot" type cameras with non-removable lenses must shoot through an eyepiece to form an image. This can sometimes be challenging, especially if your camera has a larger lens on it. Larger lenses tend to have more vignetting (darkened or cutoff corners of the image) when used afocally so care must be taken to select a suitable eyepiece. There are a number of criteria which must be met for an eyepiece to work well for this purpose. Also works great as a wide field eyepiece visually.
The MaxView 40 was designed to specifically meet the required criteria for afocal imaging.
An easy way to connect a Camera
The MaxView 40 has a thread off eyeguard with a standard male 42mm T-thread underneath.
Correct "Eye Relief" & Positioning
The MaxView 40 has extremely Long Eye Relief and an adjsutable top for easy positioning.
Large Diameter Quality Optics
The MaxView 40 has the largest possible optics that can fit inside a T-thread.
All optics are 100% fully Multi-Coated.
Close Optical Coupling / Non -Recessed Lens
The MaxView 40 optics are mounted a mere 1mm from the top for the closest optical coupling possible.
Long Focal Length
The MaxView 40 has a long 40mm Focal Length to prevent "overpowering" at high camera zoom settings.
You will also need an "Attachment Kit" to mate the MaxView 40 to your particular camera model.
Description |
Item # |
Price |
Add to Cart |
MaxView 40 Afocal Eyepiece / T Adapter |
MV40 |
SALE $79! |

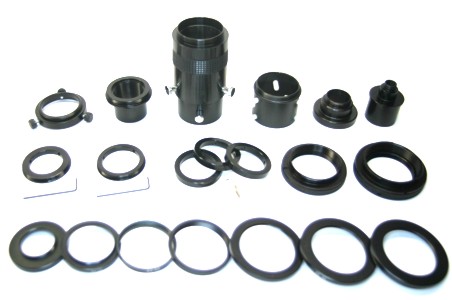

Master Camera Adapter Set
20 pc Master Adapter Set
Have it all when you need it and save 40%!
The Master Camera Adapter Set includes 20 of our most popular items useful for connecting SLR/DSLR cameras, consumer cameras with filter threads and "C" mount box cameras to a telescope or microscope. The various adapters will allow you to perform "Prime Focus", "Eyepiece Projection" and "Variable Projection" photography. You save $175 over buying the items individually (Individual price $465) and will have it on hand when you need it.
Includes:
Row 1: AdaptaView adapter, T-125" Adapter, Projection Adapter, Universal T Adapter, C to T Adapter, Webcam Adapter
Row 2: Digital T Ring #1, Digital T Ring #2, (3) 1.25" Parfocalizing Rings, Canon EOS T Ring, Nikon T Ring
Row 3: 28-T Step Ring, 37-T Step Ring, 43-T Step Ring, 46-T Step Ring, 52-T Step Ring, 55-T Step Ring, 58-T Step Ring
Note: Substitutions are available. Just email us.
Description |
Item # |
Price |
Add to Cart |
Master Telescope Camera Adapter Set |
MSET |
$295.00 |
